Ashly nXP1.54 overview

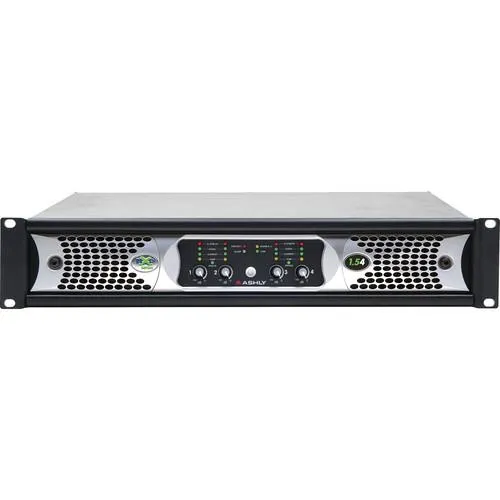

The nXp1.54 Network Power Amplifier from Ashly Audio is the networkable version of the nX amplifier. It comes with Ethernet control, serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability. All these are controlled using Ashly Audio's Protea software suite. This amplifier is designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers.
The Network Power Amplifier adds 32-bit SHARC DSP processing (with 48 kHz and 96 kHz sampling) as standard equipment for comprehensive audio processing, with built-in signal generator for test tone, and noise-masking. Plus, you get precision load impedance monitoring on each amplifier channel output.
- 2-channel high-output, lightweight amplifier with programmable output on each channel 1
- Power saving, Energy Management System (Ashly EMS) automatic <1W sleep mode is defeatable 2
- Front panel power switch and level controls can be disabled for security 3
- Neutrik Combo XLR: 1/4" TRS jack plus Euroblock input connectors
- Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability
- Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration
- Remote DC level control on each input channel
- Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED
- Neutrik powerCON detachable AC mains connector
- Switch mode power supply automatically detects 120 or 240 VAC operation
- Extensive protection circuitry, continuously variable cooling fans
- Multiple independent internal power supplies provide increased channel separation and reliability
- Serial data port for use with Ashly remote control devices, or RS-232 converter (sold separately) for third party controllers (INA-1)
- Uses Protea software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
- Real-time clock with event scheduler
- Instant standby mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler
- Programmable power-on delay
- Preset recall via contact closure, software control, remote control, or event scheduler
- Auxiliary preamplifier outputs and fault condition logic outputs
- Cobranet or Dante network audio (sold separately) and AES3 digital audio input with pass-through
- Ducking at mixer, peak hold indicator, in/out per filter, key engage, lock per filter, and global lock
- Dynamics, gain, equalization, 2x4 or 4x4 matrix mixer, crossover, delay, metering, and signal generator functions for test and noise masking applications
- Precision swept load impedance monitoring of each amplifier channel for quick and easy diagnosis of sound system problems remotely via Ethernet
-
