Features:
- 17" LCD High-Resolution Touch Screen Display
- 18 Channels of Voltage & DC Bridge Inputs
- Dedicated 1 TB Removable Hard Drive for Data Capture
- 800 kHz Sample Rate/Channel
- 100 kHz Bandwidth

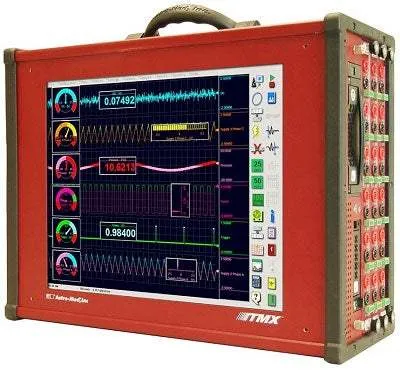

The AstroNova TMX-18 Portable Data Recorder features a high resolution, 17" touch-screen display, as well as pre-defined set up options, and accepts a variety of inputs that lets you mix and match different sensors within one test. Such capabilities allow users to connect pressure sensors, strain gauges, thermocouples, high voltage and other signals to one system. The AstroNova TMX-18 Portable Data Recorder automatically converts data to engineering units, giving you your data in units of pressure, strain, and temperature to name a few. Should your requirements change later, the AstroNova TMX-18 allows for growth, by allowing you to add more channels by installing input modules. Whether your test runs for 100 milliseconds or 100 hours, the AstroNova TMX-18 Portable Data Recorder won’t miss a glitch. With its dedicated 1 TByte hard drive for data capture, the TMX-18 is ideal for long-term trending and high-speed event detection. Powerful Embedded Scope Capture and intelligent triggering provide low speed trending while simultaneously monitoring and storing highly sampled, time-synchronized events.
